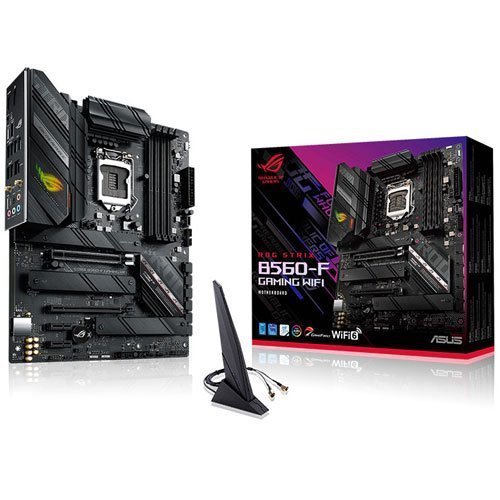

Asus ROG STRIX B560 F Gaming (WI-FI) Motherboard
Availability:
Out of stock
Rs 82,000.00
Out of stock
CompareDescription :
| CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core | |
|
Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU |
||
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 | ||
| Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | ||
| Chipset | B560 | |
| Memory | Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | ||
| OptiMem II | ||
| 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, | ||
| others will run at the maximum transfer rate of DDR4 2666MHz. | ||
| 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. | ||
| Graphics | Graphics specifications may vary between CPU types. | |
| Only Intel® 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 | ||
| @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz . | ||
| Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will | ||
| only support HDMI™ 1.4 with max. resolution of 4K@30Hz. | ||
| Expansion Slots | Intel® 11th &10th Gen Processors | |
| 1 x PCIe 4.0/3.0 x16 slot(s) | ||
| Intel® 11th processors support PCIe 4.0 x16 mode | ||
| Intel®10th processors support PCIe 3.0 x16 mode | ||
| Intel® B560 Chipset | ||
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | ||
| 2 x PCIe 3.0 x1 slots | ||
| The PCIEX16_2 shares bandwidth with the M.2_2. When M.2_2 runs x4 mode, | ||
| PCIEX16_2 will be disabled. | ||
| Storage |
Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports |
|
|
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports |
||
| Intel®11th Gen Processors | ||
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | ||
| Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | ||
| Intel® B560 Chipset | ||
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) | ||
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) | ||
| 6 x SATA 6Gb/s ports | ||
| The M.2_2 share bandwidth with PCIEX16_2. When PCIEX16_2 runs x4 mode M.2_2 can’t run | ||
| PCIE mode (when M.2_2 runs at SATA mode, SATA6G_1 will be disabled) | ||
| Ethernet | 1 x Intel® 2.5Gb Ethernet | |
| Wireless & Bluetooth | Intel® Wi-Fi 6 | |
| USB | 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) | |
| 2 x USB 3.2 Gen 2 port (2 x Type-A) | ||
| 2 x USB 3.2 Gen 1 port (2 x Type-A) | ||
| 4 x USB 2.0 port(s) (3 x Type-A, 1 x audio USB Type-C) | ||
| Front USB:Total 7 ports | ||
| 1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C) | ||
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | ||
| 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | ||
| Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A | |
| Impedance sense for front and rear headphone outputs | ||
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | ||
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | ||
| Supports up to 32-Bit/192 kHz playback | ||
| Audio Features | ||
| SupremeFX Shielding Technology | ||
| Savitech SV3H712 AMP | ||
| Rear audio USB Type-C® port | ||
| Premium Japanese audio capacitors | ||
| Audio cover | ||
| Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | ||
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) | |
| 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) | ||
| 2 x USB 3.2 Gen 1 port(s) (2 x Type-A) | ||
| 4 x USB 2.0 port(s) (3 x Type-A, 1 x audio USB Type-C) | ||
| 1 x HDMI™ port | ||
| 1 x DisplayPort | ||
| 1 x ASUS Wi-Fi Module | ||
| 1 x Intel® I225-V 2.5Gb Ethernet | ||
| 5 x Audio jacks | ||
| 1 x BIOS FlashBack™ button | ||
| Special Features | Extreme Engine Digi+ | |
| 5K Black Metallic Capacitors | ||
| ASUS Q-Design | ||
| M.2 Q-Latch | ||
| Q-DIMM | ||
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | ||
| Q-Slot | ||
| ASUS Thermal Solution | ||
| M.2 heatsink | ||
| ASUS EZ DIY | ||
| BIOS FlashBack™ button | ||
| BIOS FlashBack™ LED | ||
| ProCool | ||
| Pre-mounted I/O shield | ||
| SafeSlot | ||
| AURA Sync | ||
| AURA RGB header(s) | ||
| Addressable Gen 2 RGB header(s) | ||
| Software Features | ROG Exclusive Software | |
| RAMCache III | ||
| ROG CPU-Z | ||
| GameFirst VI | ||
| Sonic Studio III + Sonic Studio Virtual Mixer | ||
| Sonic Radar III | ||
| DTS® Sound Unbound | ||
| Overwolf | ||
| Anti-virus software | ||
| ASUS Exclusive Software | ||
| Armoury Crate | ||
| AIDA64 Extreme (60 days free trial) | ||
| AURA Creator | ||
| AURA Sync | ||
| Two-Way AI Noise Cancelation AI Suite 3 | ||
| Performance And Power Saving Utility | ||
| TurboV EVO | ||
| EPU | ||
| DIGI+ VRM | ||
| Fan Xpert 4 | ||
| EZ update | ||
| MyAsus | ||
| WinRAR | ||
| DAEMON Tools | ||
| UEFI BIOS | ||
| ASUS EZ DIY | ||
| ASUS CrashFree BIOS 3 | ||
| ASUS EZ Flash 3 | ||
| ASUS UEFI BIOS EZ Mode | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Manageability | WOL by PME, PXE | |
| Accessories | Cables | |
| 4 x SATA 6Gb/s cables | ||
| 1 x ROG audio USB Type-C cable | ||
| Miscellaneous | ||
| 1 x ASUS Wi-Fi moving antennas | ||
| 1 x Cable ties pack | ||
| 1 x M.2 Q-Latch package | ||
| 2 x M.2 Rubber Packages | ||
| 1 x ROG key chain | ||
| 1 x ROG STRIX stickers | ||
| 1 x ROG STRIX thank you card | ||
| Installation Media | ||
| 1 x Support DVD | ||
| Documentation | ||
| 1 x User manual | ||
| Operating System | Windows 10 64bit | |
| Form Factor |
ATX |
|
|
30.5cm x 24.4cm |
