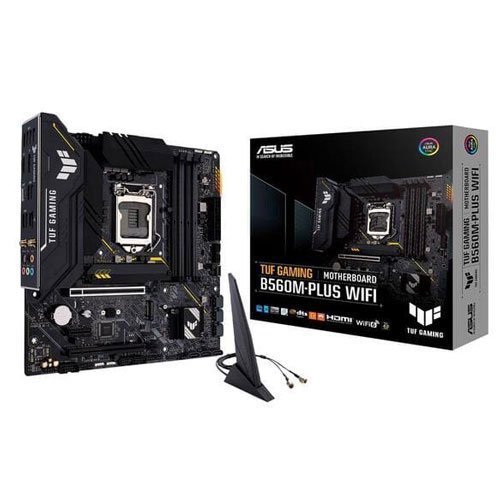

Name: Asus TUF Gaming B560M PLUS WI-FI Motherboard
SKU: 307
Availability: OutOfStock

Description :

CPU		Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core
		Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU
		Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
		* Refer to www.asus.com for CPU support list.
		** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset		B560

Memory		DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600
		(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered
		Memory*
		Dual Channel Memory Architecture
		Supports Intel® Extreme Memory Profile (XMP)
		OptiMem II
		10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively,
		others will run at the maximum transfer rate of DDR4 2666MHz.
		* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
		* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists),and memory
		frequency support depends on the CPU types.

Graphics		1 x HDMI 2.0
		1 x DisplayPort 1.4**
		1 x HDMI™ 1.4 / 2.0***
		* Graphics specifications may vary between CPU types.
		** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of
		4096 x 2304 @60Hz Only Intel® 11th Gen processors support HDMI™ 2.0 with max.
		resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz

Expansion Slots		1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
		Intel® 11th &10th Gen Processors
		1 x PCIe 4.0/3.0 x16 slot(s)*
		– Intel® 11th Gen processors support PCIe 4.0 x16
		– Intel®10th Gen processors support PCIe 3.0 x16
		Intel® B560 Chipset
		1 x PCIe 3.0 x16 slot (supports x4 mode)
		1 x PCIe 3.0 x1 slots

Storage		Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
		Intel®11th Gen Processors
		M.2_1 slot (Key M), type 2242/2260/2280
		Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other
		CPUs
		Intel® B560 Chipset
		M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
		6 x SATA 6Gb/s ports
		To enable Intel® Optane™ Memory (Hybrid Storage device) it must be installed in
		PCH-attached slots with Intel® Rapid Storage Technology.
		M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode
		SATA_2 will be disabled.

Wireless & Bluetooth		Intel® Wi-Fi 6
		2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
		Supports 2.4/5GHz frequency band
		Bluetooth v5.0 or later

USB		Rear USB:Total 9 ports
		2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
		3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C®)
		4 x USB 2.0 port(s) (4 x Type-A)

		1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C®)
		1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
		2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio		Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
		– Supports up to 24-Bit/192 kHz playback
		Audio Features
		– Audio Shielding
		– Rear optical S/PDIF out port
		– Premium Japanese audio capacitors
		– Dedicated audio PCB layers

Back Panel I/O Ports		2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
		3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)
		4 x USB 2.0 port(s) (4 x Type-A)
		1 x DisplayPort
		1 x HDMI™ port
		1 x ASUS Wi-Fi Module
		1 x Realtek 2.5Gb Ethernet port
		5 x Audio jacks
		1 x Optical S/PDIF out port

Intrernal I/O Connectors		1 x TB Header (for add-on TB card)
		Fan and Cooling related
		1 x 4-pin CPU Fan header(s)
		1 x 4-pin CPU OPT Fan header(s)
		2 x 4-pin Chassis Fan header(s)
		Power related
		1 x 24-pin Main Power connector
		1 x 8-pin +12V Power connector
		Storage related
		2 x M.2 slots (Key M)
		6 x SATA 6Gb/s ports
		USB
		1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
		1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
		2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
		Miscellaneous
		2 x AURA Addressable Gen 2 header(s)
		2 x AURA RGB header(s)
		1 x Clear CMOS header
		1 x COM Port header
		1 x Front Panel Audio header (AAFP)
		1 x 20-3 pin System Panel header with Chassis intrude function
		1 x Thunderbolt™ header

Special Features		ASUS TUF PROTECTION
		– Digital power design with DrMOS
		– Enhanced DRAM Overcurrent Protection
		– ESD Guards
		– TUF LANGuard
		– Overvoltage Protection
		– SafeSlot Core+
		– Stainless-Steel Back I/O
		ASUS Q-Design
		– M.2 Q-Latch
		– Q-DIMM
		– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
		– Q-Slot
		ASUS Thermal Solution
		– Flexible M.2 heatsink
		– VRM heatsink design
		ASUS EZ DIY
		– ProCool
		– Pre-mounted I/O shield
		AURA Sync
Software Features		– AURA RGB header(s)
		– Addressable Gen 2 RGB header(s)

Software Features		ASUS Exclusive Software
		Armoury Crate
		– AURA Creator
		– AURA Sync
		– Two-Way AI Noise Cancelation
		AI Suite 3
		– Performance And Power Saving Utility
		TurboV EVO
		EPU
		Digi+ VRM
		Fan Xpert 2+
		– EZ update
		TUF GAMING CPU-Z
		AI Charger
		ASUS Turbo LAN
		DAEMON Tools
		DTS Custom for GAMING Headsets
		MyAsus
		Norton Anti-virus software (Free Trial version)
		WinRAR
		UEFI BIOS
		ASUS EZ DIY
		– ASUS CrashFree BIOS 3
		– ASUS EZ Flash 3
		– ASUS UEFI BIOS EZ Mode

BIOS		128 Mb Flash ROM, UEFI AMI BIOS

Manageability		WOL by PME, PXE

Accessories		Cables
		2 x SATA 6Gb/s cables
		Miscellaneous
		1 x ASUS Wi-Fi moving antennas
		1 x M.2 Rubber Package(s)
		1 x M.2 SSD screw package(s)
		1 x TUF Gaming sticker
		Installation Media
		1 x Support DVD
		Documentation
		1 x TUF Certification card
		1 x User manual

SKU: 307 Category: Motherboards
