Motherboards

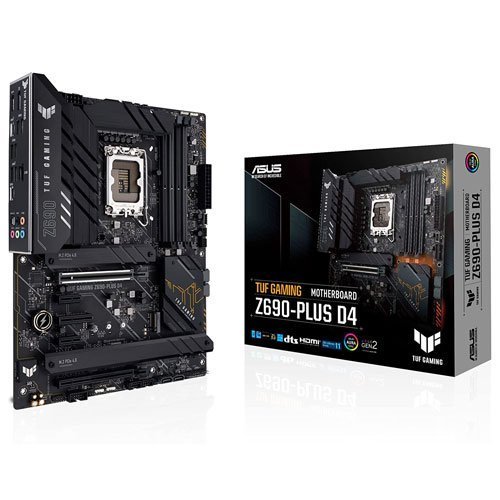

Asus TUF Gaming Z690 Plus D4 12th Gen Motherboard (3Y)
Availability:
Out of stock
Rs 94,999.00
Out of stock
CompareDescription :
| CPU | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 | |
| Chipset | Z690 | |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC) | |
| /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture. |
||
| Graphics | 1 x DisplayPort** | |
| 1 x HDMI® port*** | ||
| * Graphics specifications may vary between CPU types. | ||
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4 | ||
| ***Supports 4K@60Hz as specified in HDMI 2.1. | ||
| **** VGA resolution support depends on processors’ or graphic cards’ resolution. | ||
| Expansion Slots | Intel® 12th Gen Processors* | |
| 1 x PCIe 5.0 x16 slot | ||
| Intel® Z690 Chipset** | ||
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | ||
| 1 x PCIe 3.0 x4 slot | ||
| 2 x PCIe 3.0 x1 slots | ||
| * Please check PCIe bifurcation table in support site. | ||
| ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot | ||
| Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports | |
| Intel® 12th Gen Processors | ||
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | ||
| – Intel® 12th Gen processors support PCIe 4.0 x4 mode | ||
| Intel® Z690 Chipset** | ||
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | ||
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | ||
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | ||
| 4 x SATA 6Gb/s ports | ||
| Ethernet | 1 x Intel® 2.5Gb Ethernet | |
| TUF LANGuard | ||
| USB | Rear USB:Total 8 ports | |
| 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) | ||
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | ||
| 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) | ||
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | ||
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | ||
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | ||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* | |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | ||
| – Supports up to 24-Bit/192 kHz playback | ||
| Audio Features | ||
| – Audio Shielding | ||
| – Rear optical S/PDIF out port | ||
| – Premium audio capacitors | ||
| – Dedicated audio PCB layers | ||
| – Audio Cover | ||
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) | |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | ||
| 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) | ||
| 1 x DisplayPort | ||
| 1 x HDMI® port | ||
| 1 x Intel® 2.5Gb Ethernet port | ||
| 5 x Audio jacks | ||
| 1 x Optical S/PDIF out port | ||
| Internal I/O Connectors | Fan and Cooling related | |
| 1 x 4-pin CPU Fan header | ||
| 1 x 4-pin CPU OPT Fan header | ||
| 1 x 4-pin AIO Pump header | ||
| 4 x 4-pin Chassis Fan headers | ||
| Power related | ||
| 1 x 24-pin Main Power connector | ||
| 1 x 8-pin +12V Power connector | ||
| 1 x 4-pin +12V Power connector | ||
| Storage related | ||
| 4 x M.2 slots (Key M) | ||
| 4 x SATA 6Gb/s ports | ||
| USB | ||
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | ||
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | ||
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | ||
| Miscellaneous | ||
| 3 x Addressable Gen 2 headers | ||
| 1 x AURA RGB header | ||
| 1 x Clear CMOS header | ||
| 1 x COM Port header | ||
| 1 x Front Panel Audio header (AAFP) | ||
| 1 x 20-3 pin System Panel header with Chassis intrude function | ||
| 1 x Thunderbolt™ header | ||
| Special Features | ASUS TUF PROTECTION | |
| – DIGI+ VRM (- Digital power design with DrMOS) | ||
| – Enhanced DRAM Overcurrent Protection | ||
| – ESD Guards | ||
| – TUF LANGuard | ||
| – Overvoltage Protection | ||
| – Safeslot | ||
| – Stainless-Steel Back I/O | ||
| ASUS Q-Design | ||
| – M.2 Q-Latch | ||
| – Q-DIMM | ||
| – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | ||
| – Q-Slot | ||
| ASUS Thermal Solution | ||
| – M.2 heatsink | ||
| – VRM heatsink design | ||
| ASUS EZ DIY | ||
| – CPU Socket lever protector | ||
| – ProCool | ||
| – Pre-mounted I/O shield | ||
| – SafeDIMM | ||
| AURA Sync | ||
| – AURA RGB header | ||
| – Addressable Gen 2 headers | ||
| Software Features | ASUS Exclusive Software | |
| Armoury Crate | ||
| – AURA Creator | ||
| – AURA Sync | ||
| – Fan Xpert 4 | ||
| – Two-Way AI Noise Cancelation | ||
| AI Suite 3 | ||
| – Performance And Power Saving Utility | ||
| TurboV EVO | ||
| EPU | ||
| DIGI+ VRM | ||
| TUF GAMING CPU-Z | ||
| DTS Audio Processing | ||
| MyAsus | ||
| Norton Anti-virus software (Free Trial version) | ||
| WinRAR | ||
| UEFI BIOS | ||
| ASUS EZ DIY | ||
| – ASUS CrashFree BIOS 3 | ||
| – ASUS EZ Flash 3 | ||
| – ASUS UEFI BIOS EZ Mode | ||
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Manageability | WOL by PME, PXE | |
| Accessories | Cables | |
| 2 x SATA 6Gb/s cables | ||
| Miscellaneous | ||
| 2 x M.2 Rubber Packages | ||
| 1 x M.2 SSD screw package | ||
| 1 x TUF GAMING sticker | ||
| Installation Media | ||
| 1 x Support DVD | ||
| Documentation | ||
| 1 x TUF Certification card | ||
| 1 x User guide | ||
| Form Factor | ATX | |
| 30.5cm x 24.4cm |
