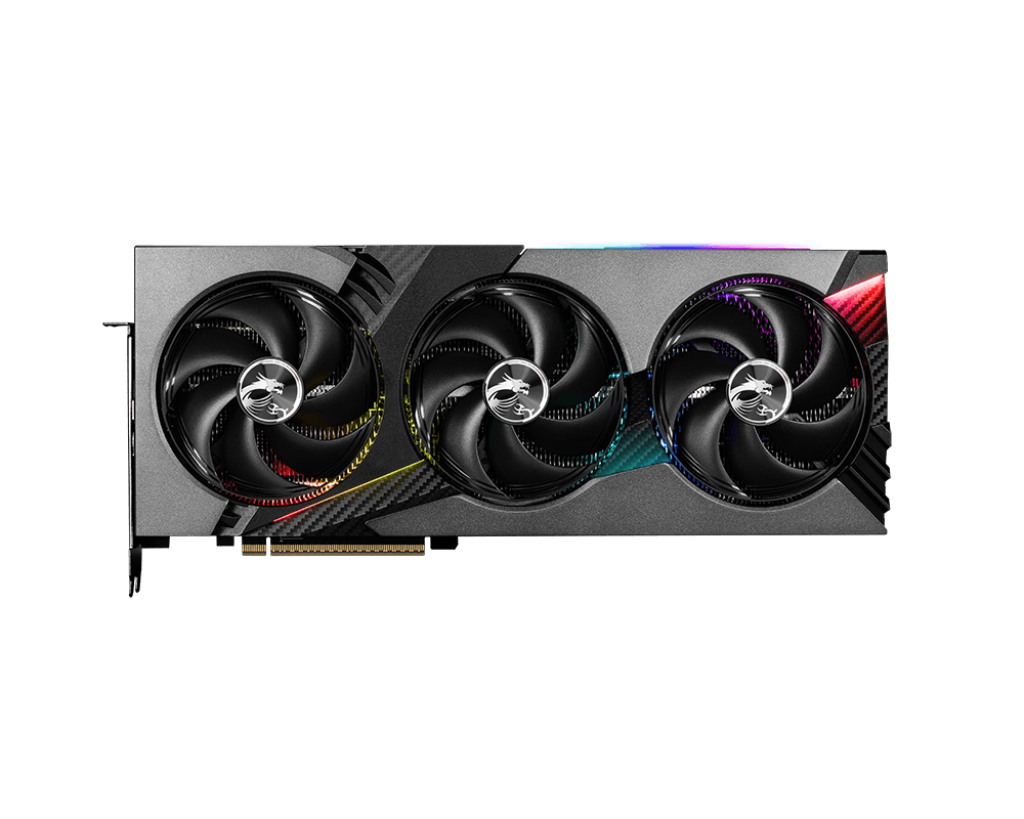

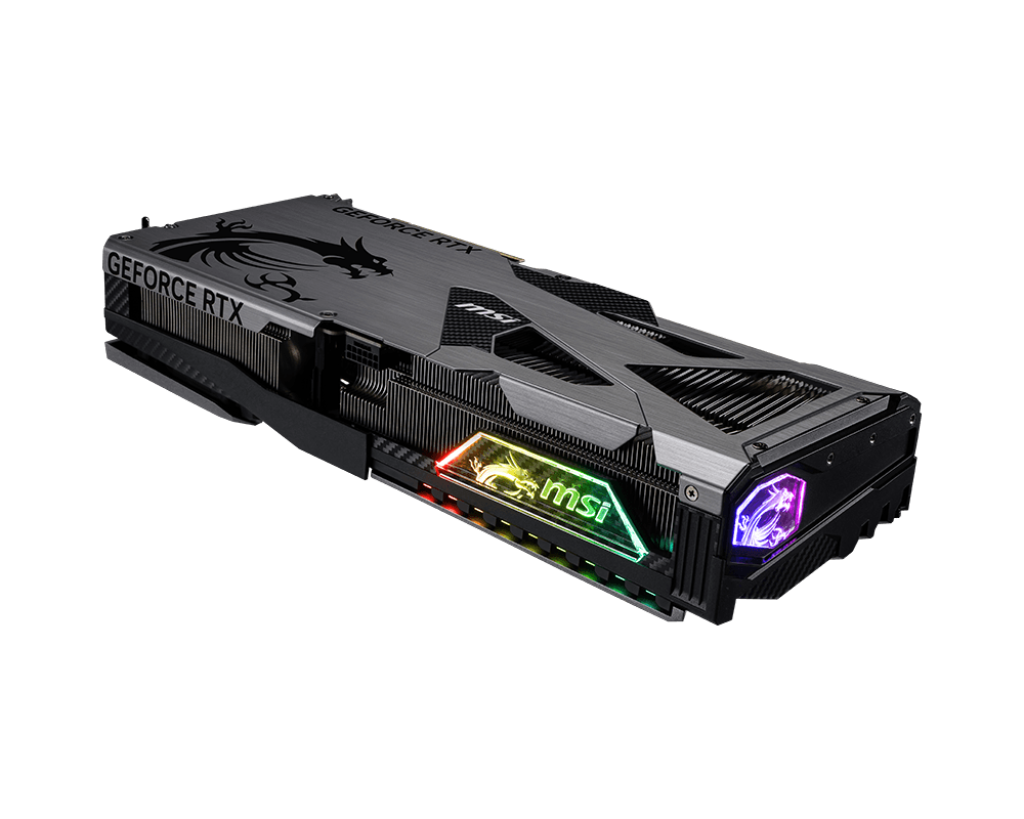

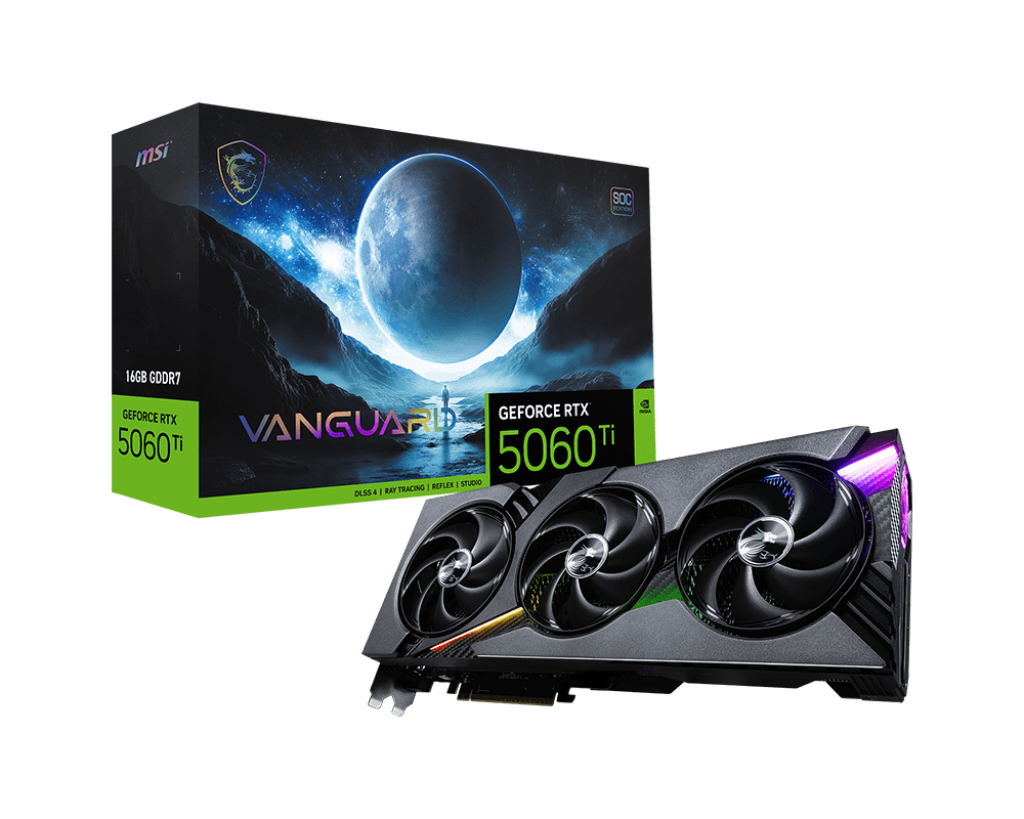

MSI GeForce RTX™ 5060 Ti 16G VANGUARD SOC Graphics Card
Overview
Experience next-generation gaming with the MSI GeForce RTX™ 5060 Ti 16G VANGUARD SOC. Powered by NVIDIA’s cutting-edge Blackwell architecture and equipped with 16GB of ultra-fast GDDR7 memory, this graphics card delivers exceptional performance, stunning visuals, and advanced features to elevate your gaming and creative endeavors.
Key Features
- NVIDIA Blackwell Architecture: Leverages the latest advancements for improved performance and efficiency.
- 16GB GDDR7 Memory: Provides ample high-speed memory for demanding games and applications.
- DLSS 4 Support: Utilizes AI to boost frame rates and generate high-quality images.
- Real-Time Ray Tracing: Offers realistic lighting, shadows, and reflections for immersive gaming experiences.
- TRI FROZR 4 Cooling System: Enhanced thermal design with STORMFORCE Fans for superior cooling and minimal noise.
- PCIe 5.0 Interface: Ensures high-bandwidth communication with the latest motherboards.
- Display Outputs: Equipped with 3 x DisplayPort 2.1b and 1 x HDMI 2.1b ports, supporting up to 8K resolution.
- MSI Center & Afterburner: Provides tools for monitoring, tweaking, and optimizing GPU performance.
Specifications
| Specification | Details |
|---|---|
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Architecture | Blackwell |
| CUDA® Cores | 4608 Units |
| Core Clocks | Extreme Performance: 2707 MHz (MSI Center) Boost: 2692 MHz |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Display Outputs | 3 x DisplayPort v2.1b 1 x HDMI™ v2.1b |
| HDCP Support | Yes |
| Power Consumption (TDP) | 180 W |
| Power Connectors | 1 x 16-pin |
| Recommended PSU | 600 W |
| Cooling System | TRI FROZR 4, Triple STORMFORCE Fans |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| Digital Maximum Resolution | 7680 x 4320 (8K UHD) |
| Dimensions | 337 x 140 x 61 mm |
| Weight | 1278 g (Card) / 2059 g (Package) |
| Warranty | 3 Years |
Advanced Cooling & Design
The TRI FROZR 4 cooling system features upgraded fans, airflow control, and thermal design to deliver superior cooling and quieter operation. The STORMFORCE Fans, with seven fan blades and claw texturing, are designed for optimal airflow with minimal noise. A nickel-plated copper baseplate swiftly captures heat from the GPU and memory, transferring it efficiently. Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling. Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance. Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence. The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency. A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
Software & Utilities
- MSI Center: The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
- Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.
Conclusion
Elevate your gaming experience with the MSI GeForce RTX™ 5060 Ti 16G VANGUARD SOC Graphics Card. Its advanced architecture, ample memory, and superior cooling make it an excellent choice for gamers and creators seeking top-tier performance.
